STRIP45 – Bandpass characterization

General information

Edit  Delete

Polarimeter STRIP45
Acquisition date
BandQ
Cryogenic?Yes
OperatorsSilvia Caprioli
PHSW state0110
Notes

The source data file was «SCI171211_145614 - STRIP45_Tcryo20K_RF_-40dBm_0110_6_11Dec2017.txt» (551 kB)

Authorsilvia
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1848 1859 1832 1807 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
95600 95150 95400 97000 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.15 -244.0
H1 (HB1) 0.9 4.4 35.0
H2 (HA2) 0.9 7.26 472.0
H3 (HB2) 0.9 7.68 302.0
H4 (HA3) 0.9 6.75 171.0
H5 (HB3) 0.9 5.14 -0.7
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.28±0.16 6.47±0.34 JSON Download Edit  Delete

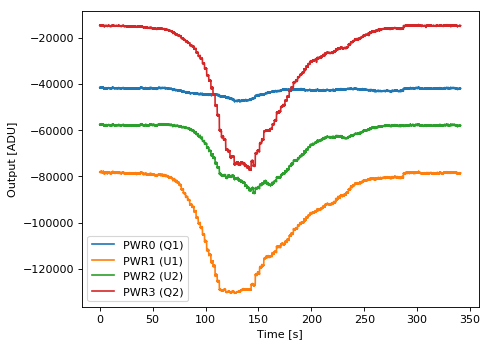

Spectrum
