Strip Test Database
STRIP45 – Y-factor, cool-down
General information
| Polarimeter | STRIP45 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| Description | Y-factor, cool-down |
| PHSW state | 0101 |

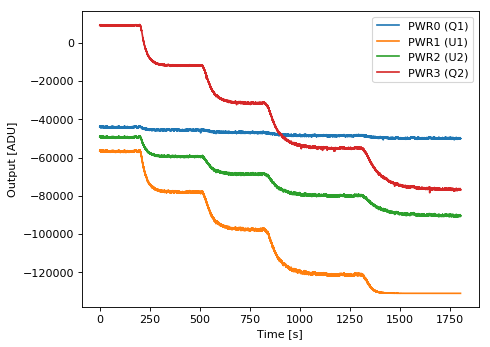

| Notes | PW1 output saturates with T loadB= 50K! Do not include the 50K step for PW1 in the Tnoise computation. The source data file was «SCI171211_151451-STRIP45_Y-Factor_LB_20K_up_10-20-30-40-50_PS0101_11Dic2017.txt» (2934 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (596.3 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.15 | -244.0 |
| H1 (HB1) | 0.9 | 4.4 | 35.0 |
| H2 (HA2) | 0.9 | 7.26 | 472.0 |
| H3 (HB2) | 0.9 | 7.68 | 302.0 |
| H4 (HA3) | 0.9 | 6.75 | 171.0 |
| H5 (HB3) | 0.9 | 5.14 | -0.7 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.5 | 10.0 | 13.5 | 20.0 | 17.2 | 15.0 | 25.5 |
|
| 20.0 | 25.5 | 20.0 | 27.2 | 20.0 | 17.2 | 15.0 | 25.5 |
|
| 20.0 | 25.4 | 30.0 | 36.5 | 20.0 | 17.2 | 15.0 | 25.5 |
|
| 20.0 | 25.4 | 40.0 | 48.5 | 20.0 | 17.2 | 15.0 | 25.5 |
|
