STRIP59 – Bandpass characterization

General information

Edit  Delete

Polarimeter STRIP59
Acquisition date
BandQ
Cryogenic?No
OperatorsSilvia Caprioli
PHSW state0110
Notes

The source data file was «SCI170714_124106 - STRIP59_Tcryo20K_RF_-40dBm_0110_pol-JPL_14Jul2017.txt» (471 kB)

Authorsilvia
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1918 1932 1900 1963 Edit  Delete

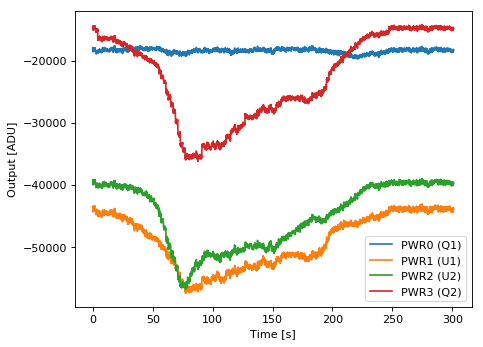

Detector outputs
PWR0 PWR1 PWR2 PWR3
84940 83150 84000 85760 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.92 3.02 93.0
H1 (HB1) 0.9 3.2 121.0
H2 (HA2) 1.21 12.1 274.0
H3 (HB2) 1.21 12.04 222.0
H4 (HA3) 0.91 8.04 201.0
H5 (HB3) 0.9 8.06 234.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.78±0.03 8.42±0.38 JSON Download Edit  Delete
Spectrum
