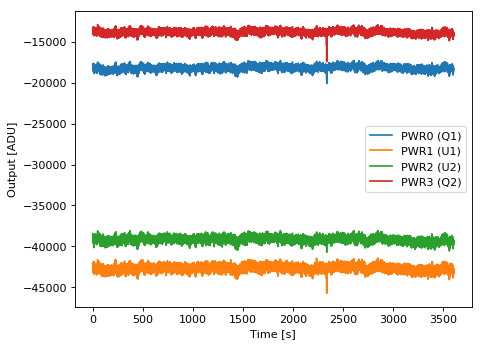

STRIP59 – Long acquisition
General information
| Polarimeter | STRIP59 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| PHSW state | switching |
| Notes | The source data file was «SCI170714_143911 - STRIP59_1_f__PS-default_JPL polariz_14Jul2017.txt» (6303 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (1.1 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.92 | 3.02 | 93.0 |
| H1 (HB1) | 0.9 | 3.2 | 121.0 |
| H2 (HA2) | 1.21 | 12.1 | 274.0 |
| H3 (HB2) | 1.21 | 12.04 | 222.0 |
| H4 (HA3) | 0.91 | 8.04 | 201.0 |
| H5 (HB3) | 0.9 | 8.06 | 234.0 |
