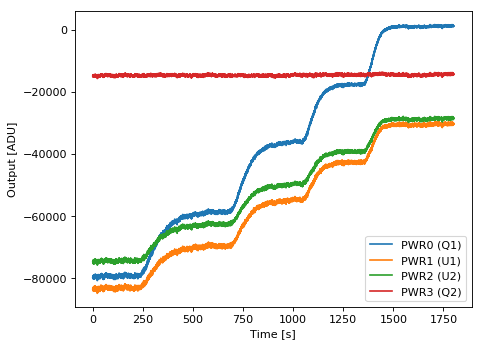

STRIP59 – Y-factor test
General information
| Polarimeter | STRIP59 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170714_140102 - STRIP59_Y-Factor_LB_20K_down_50-40-30-20-10_PS0110_14Jul2017.txt» (2831 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (593.6 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.92 | 3.02 | 93.0 |
| H1 (HB1) | 0.9 | 3.2 | 121.0 |
| H2 (HA2) | 1.21 | 12.1 | 274.0 |
| H3 (HB2) | 1.21 | 12.04 | 222.0 |
| H4 (HA3) | 0.91 | 8.04 | 201.0 |
| H5 (HB3) | 0.9 | 8.06 | 234.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 26.0 | 50.0 | 60.0 | 20.0 | 17.1 | 15.0 | 24.4 |
|
| 20.0 | 26.0 | 40.0 | 49.1 | 20.0 | 17.1 | 15.0 | 24.4 |
|
| 20.0 | 26.1 | 30.0 | 37.3 | 20.0 | 17.1 | 15.0 | 24.4 |
|
| 20.0 | 26.1 | 20.0 | 28.2 | 20.0 | 17.1 | 15.0 | 24.4 |
|
| 20.0 | 26.1 | 10.0 | 14.8 | 20.0 | 17.1 | 15.0 | 24.4 |
|
