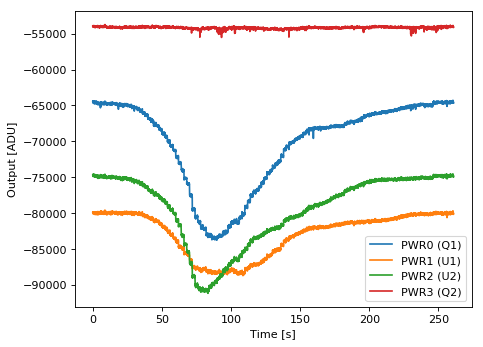

STRIP50 – Bandpass characterization
General information
| Polarimeter | STRIP50 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Silvia Caprioli, Federico Incardona, Claudio Pincella |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170510_114457 - STRIP50_Tcryo20K_RF_-40dBm_0101_10May2017.txt» (409 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (91.1 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.3 | 64.0 |
| H1 (HB1) | 0.9 | 4.2 | 82.0 |
| H2 (HA2) | 0.9 | 6.0 | 372.0 |
| H3 (HB2) | 0.9 | 5.1 | 440.0 |
| H4 (HA3) | 0.9 | 9.1 | 5.0 |
| H5 (HB3) | 0.9 | 5.1 | 20.0 |
