Strip Test Database
STRIP50 – Y-factor test
General information
| Polarimeter | STRIP50 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Federico Incardona, Claudio Pincella |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170510_120123 - STRIP50_Y-Factor_LB_20K_up_20-30-40_PS0101_10May2017.txt» (945 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (190.9 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.3 | 64.0 |
| H1 (HB1) | 0.9 | 4.2 | 82.0 |
| H2 (HA2) | 0.9 | 6.0 | 372.0 |
| H3 (HB2) | 0.9 | 5.1 | 440.0 |
| H4 (HA3) | 0.9 | 9.1 | 5.0 |
| H5 (HB3) | 0.9 | 5.1 | 20.0 |

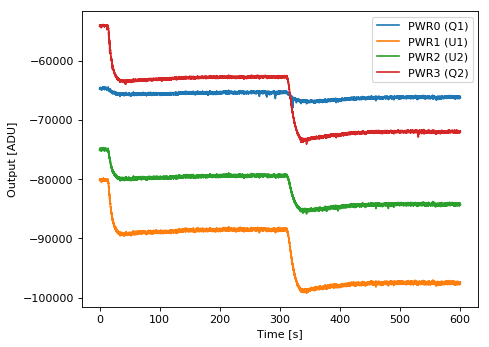

Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 20.9 | 20.0 | 19.3 | 20.0 | 13.5 | 15.0 | 17.4 |
|
| 20.0 | 20.8 | 30.0 | 29.5 | 20.0 | 13.5 | 15.0 | 17.4 |
|
| 20.0 | 20.8 | 40.0 | 39.6 | 20.0 | 13.5 | 15.0 | 17.4 |
|
