Strip Test Database

STRIP05 – Bandpass characterization Tcryo (PS1001 - PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP05
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS1001 - PWR0 blind)
PHSW state1001
Notes

The source data file was «SCI171215_095448 - STRIP05_Tcryo20K_RF_-40dBm_1001_15Dec2017.txt» (447 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1824 1849 1801 1845 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
97240 95500 94050 94085 Edit  Delete
1 2 3 4 Edit  Delete
1 2 3 4 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 7.0 337.0
H1 (HB1) 0.9 6.7 323.0
H2 (HA2) 0.9 8.5 396.0
H3 (HB2) 0.9 8.8 333.0
H4 (HA3) 0.9 6.55 344.0
H5 (HB3) 0.9 8.6 194.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.50±0.11 6.91±0.28 JSON Download Edit  Delete

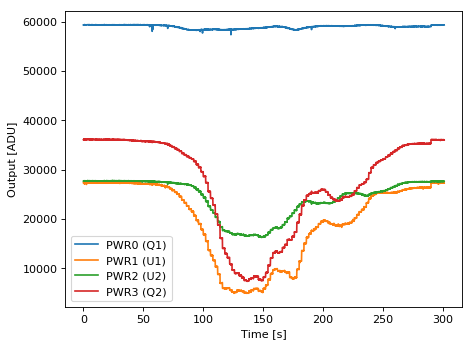

Spectrum
