Strip Test Database
STRIP05 – Y-Factor test_BIAS1200_down LB (PS1001-PWR3 blind)
General information
| Polarimeter | STRIP05 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Y-Factor test_BIAS1200_down LB (PS1001-PWR3 blind) |
| PHSW state | 1001 |

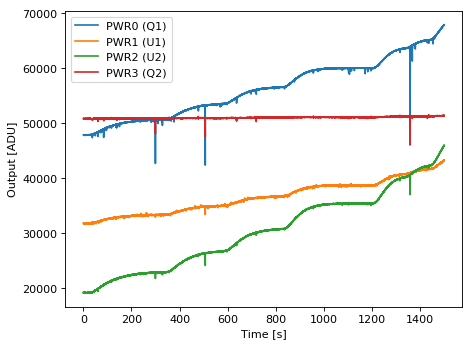

| Notes | The source data file was «SCI171215_150602 - STRIP05_Y-Factor_LA_20K_downLB_50-45-40-35-30-25-20-10_PS1001_bias1200_15Dec2017.txt» (2258 kB) BIAS 1200 ADU, more temperature steps. Do not consider last section of the temperature step transient (from 20 to 10 K), because steady state at 10 K has not been reached yet. |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (419.9 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 7.0 | 337.0 |
| H1 (HB1) | 0.9 | 6.7 | 323.0 |
| H2 (HA2) | 0.9 | 8.5 | 396.0 |
| H3 (HB2) | 0.9 | 8.8 | 333.0 |
| H4 (HA3) | 0.9 | 6.55 | 344.0 |
| H5 (HB3) | 0.9 | 8.6 | 194.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.5 | 50.0 | 59.6 | 20.0 | 16.7 | 15.0 | 25.7 |
|
| 20.0 | 25.5 | 45.0 | 54.5 | 20.0 | 16.7 | 15.0 | 25.7 |
|
| 20.0 | 25.5 | 40.0 | 49.1 | 20.0 | 16.7 | 15.0 | 25.7 |
|
| 20.0 | 25.5 | 35.0 | 43.4 | 20.0 | 16.7 | 15.0 | 25.7 |
|
| 20.0 | 25.5 | 30.0 | 36.6 | 20.0 | 16.7 | 15.0 | 25.7 |
|
| 20.0 | 25.5 | 25.0 | 30.2 | 20.0 | 16.7 | 15.0 | 25.7 |
|
| 20.0 | 25.5 | 20.0 | 27.6 | 20.0 | 16.7 | 15.0 | 25.7 |
|
