STRIP05 – Bandpass characterization Tcryo - Bias 1200 ADU (PS1010 - PWR3 blind)
General information
| Polarimeter | STRIP05 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tcryo - Bias 1200 ADU (PS1010 - PWR3 blind) |
| PHSW state | 1010 |
| Notes | The source data file was «SCI171215_141142 - STRIP05_Tcryo20K_RF_-40dBm_1010_bias1200_15Dec2017.txt» (448 kB) BIAS 1200 ADU |
| Author | claudio |
| Date of creation | |
| JSON record | Link |

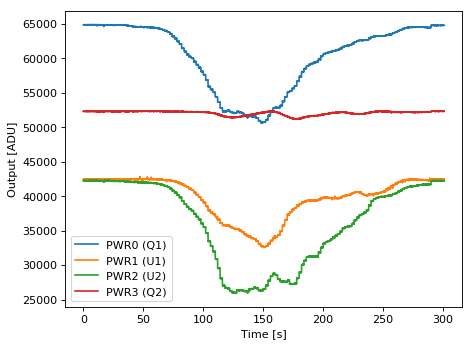

- Download data file (95.0 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 7.0 | 337.0 |
| H1 (HB1) | 0.9 | 6.7 | 323.0 |
| H2 (HA2) | 0.9 | 8.5 | 396.0 |
| H3 (HB2) | 0.9 | 8.8 | 333.0 |
| H4 (HA3) | 0.9 | 6.55 | 344.0 |
| H5 (HB3) | 0.9 | 8.6 | 194.0 |
