STRIP58 – Bandpass characterization Tcryo (PS0101 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP58
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS0101 - PWR3 blind)
PHSW state0101
Notes

The source data file was «SCI171106_095209 - STRIP58_Tcryo20K_RF_-40dBm_0101_06Nov2017.txt» (404 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1887 1936 1895 1893 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
79550 82300 80400 79000 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.0 175.0
H1 (HB1) 0.9 4.03 53.0
H2 (HA2) 1.2 12.2 272.0
H3 (HB2) 1.21 14.0 164.0
H4 (HA3) 0.91 9.02 316.0
H5 (HB3) 0.9 9.07 434.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.35±0.06 8.08±0.26 JSON Download Edit  Delete

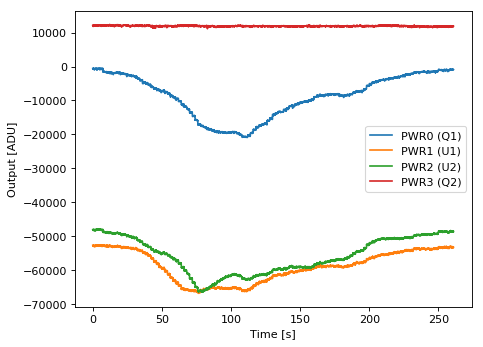

Spectrum
