STRIP57 – Bandpass characterization Tcryo (PS1010 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP57
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS1010 - PWR3 blind)
PHSW state1010
Notes

The source data file was «SCI170606_130258 - STRIP57_Tcryo20K_RF_-40dBm_1010_pol-JPL_01Jun2017.txt» (397 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1788 1934 1910 1902 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
90800 89400 88070 87860 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.95 82.0
H1 (HB1) 0.9 4.0 251.0
H2 (HA2) 1.21 15.9 383.0
H3 (HB2) 1.2 14.3 -87.0
H4 (HA3) 0.9 11.0 159.0
H5 (HB3) 0.93 11.0 265.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.72±0.12 8.74±0.16 JSON Download Edit  Delete

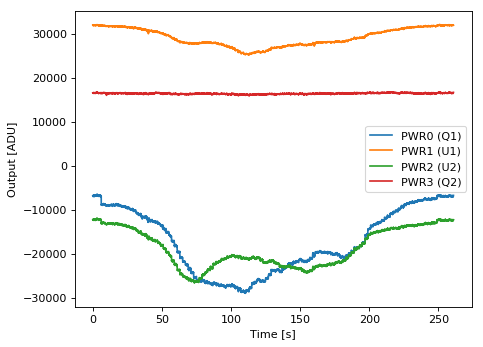

Spectrum
