STRIP52 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP52
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS0110 - PWR0 blind)
PHSW state0110
Notes

The source data file was «SCI171109_101523 - STRIP52_Tcryo20K_RF_-40dBm_0110_pol-JPL_09Nov2017.txt» (413 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1905 1802 1846 1860 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
81840 80130 79000 79970 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 5.0 -37.0
H1 (HB1) 0.89 2.56 -91.0
H2 (HA2) 1.2 15.27 208.0
H3 (HB2) 1.2 13.45 190.0
H4 (HA3) 0.9 10.0 100.0
H5 (HB3) 0.92 9.01 299.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.74±0.03 8.66±0.68 JSON Download Edit  Delete

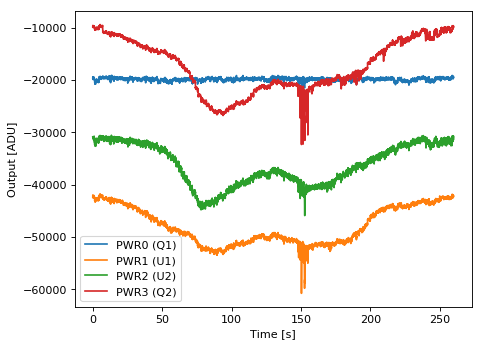

Spectrum
