STRIP47 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP47
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS0110 - PWR0 blind)
PHSW state0110
Notes

The source data file was «SCI170322_135442 - Qband47_Tcold20K_RF -40dBm_Caso2_0110_Pol con TR_22March17.txt» (414 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1859 1892 1831 1872 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
-800 -2020 -530 980 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.8 4.5 160.0
H1 (HB1) 0.9 6.7 -140.0
H2 (HA2) 0.7 5.7 360.0
H3 (HB2) 0.9 7.1 385.0
H4 (HA3) 0.7 5.8 145.0
H5 (HB3) 0.7 7.2 -140.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.16±0.06 6.58±0.33 JSON Download Edit  Delete

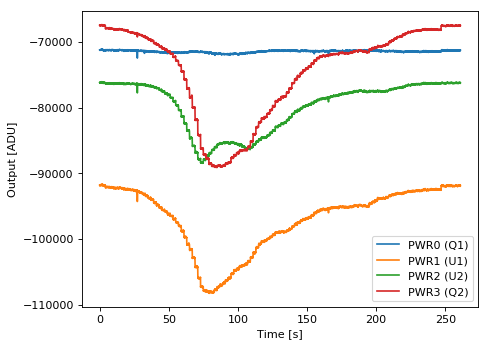

Spectrum
