Strip Test Database

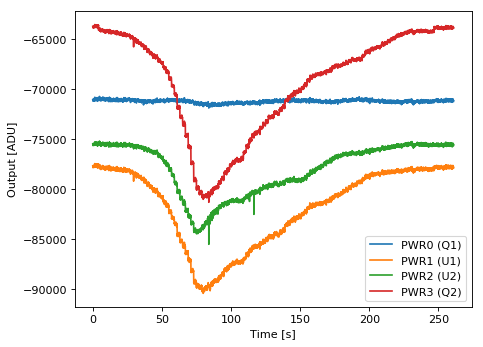

STRIP31 – Bandpass characterization
General information
| Polarimeter | STRIP31 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Federico Incardona |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170421_134242 - STRIP31_Tcryo20K_RF -40dBm_0110_21Apr2017.txt» (407 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (92.5 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 3.0 | 30.0 |
| H1 (HB1) | 0.7 | 3.0 | 30.0 |
| H2 (HA2) | 0.9 | 5.0 | 300.0 |
| H3 (HB2) | 0.9 | 4.2 | 260.0 |
| H4 (HA3) | 0.9 | 7.0 | -244.0 |
| H5 (HB3) | 0.9 | 6.0 | -77.0 |
