STRIP57 – Long acquisition

General information

Polarimeter	STRIP57
Acquisition date	Tuesday, June 6, 2017
Band	Q
Cryogenic?	Yes
Operators	Claudio Pincella
PHSW state	switching
Notes	The source data file was «SCI170606_142102 - STRIP57_1_f__PS-default_JPL polariz_06Jun2017.txt» (6207 kB)
Author	fincardona
Date of creation	Tuesday, December 19, 2017
JSON record	Link

Download data file (1.0 MB)

ADC offsets

PWR0	PWR1	PWR2	PWR3
1788	1934	1910	1902

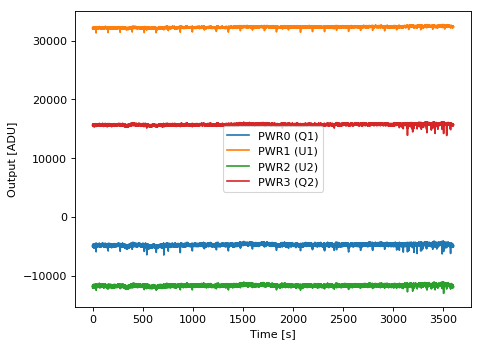

Detector outputs

PWR0	PWR1	PWR2	PWR3
90800	89400	88070	87860

HEMT biases

HEMT	V_d [V]	I_d [mA]	V_g [mV]
H0 (HA1)	0.9	4.95	82.0
H1 (HB1)	0.9	4.0	251.0
H2 (HA2)	1.21	15.9	383.0
H3 (HB2)	1.2	14.3	-87.0
H4 (HA3)	0.9	11.0	159.0
H5 (HB3)	0.93	11.0	265.0

Temperatures

T_A1 [K]	T_A2 [K]	T_B1 [K]	T_B2 [K]	T_p1 [K]	T_p2 [K]	T_c1 [K]	T_c2 [K]
20.0	25.0	20.0	23.4	20.0	16.9	15.0	25.0

Reports

Noise temperatures

Add new

Bandpasses

Add new

Spectrum

Method	α_I	α_Q	fk_Q [mHz]	WN_Q [mK²/Hz]	α_U	fk_U [mHz]	WN_U [mK²/Hz]	Details	Report	Actions
	1.03852±0.00004	1.176±0.004	90.0±30.0	1.50±0.500	0.576±0.006	60.0±30.0	1.40±0.400	JSON	Download

Add new
