Strip Test Database

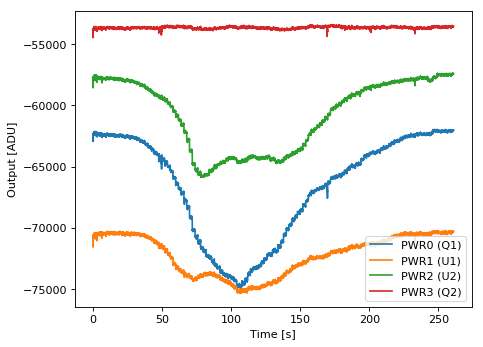

STRIP41 – Bandpass characterization
General information
| Polarimeter | STRIP41 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Federico Incardona |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170428_130741 - STRIP41_Tcryo20K_RF_-40dBm_0101_28Apr2017.txt» (407 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (86.6 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.1 | 10.0 |
| H1 (HB1) | 0.9 | 4.0 | 120.0 |
| H2 (HA2) | 0.9 | 5.0 | 195.0 |
| H3 (HB2) | 0.9 | 4.0 | 128.0 |
| H4 (HA3) | 0.9 | 7.0 | -140.0 |
| H5 (HB3) | 0.9 | 7.0 | -290.0 |
