Strip Test Database
STRIP41 – Y-factor test
General information
| Polarimeter | STRIP41 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Federico Incardona |
| PHSW state | 0101 |

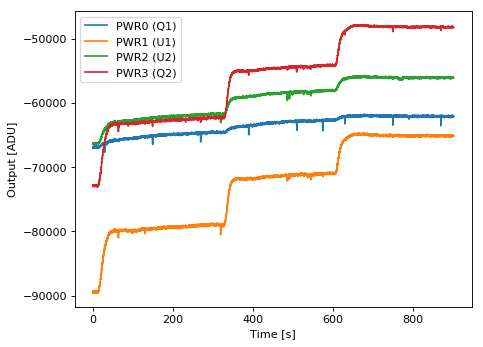

| Notes | thermal drift The source data file was «SCI170428_145001 - STRIP41_Y-Factor_LB_20K_down_40-30-20-10_PS0101_28Apr2017.txt» (1409 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (269.5 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.1 | 10.0 |
| H1 (HB1) | 0.9 | 4.0 | 120.0 |
| H2 (HA2) | 0.9 | 5.0 | 195.0 |
| H3 (HB2) | 0.9 | 4.0 | 128.0 |
| H4 (HA3) | 0.9 | 7.0 | -140.0 |
| H5 (HB3) | 0.9 | 7.0 | -290.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.0 | 40.0 | 41.9 | 21.0 | 13.4 | 7.9 | 15.0 |
|
| 20.0 | 25.0 | 30.0 | 32.0 | 21.0 | 13.4 | 7.9 | 15.0 |
|
| 20.0 | 25.0 | 20.0 | 23.6 | 21.0 | 13.4 | 7.9 | 15.0 |
|
| 20.0 | 25.0 | 10.0 | 12.9 | 21.0 | 13.4 | 7.9 | 15.0 |
|
