STRIP56 – Bandpass characterization

General information

Edit  Delete

Polarimeter STRIP56
Acquisition date
BandQ
Cryogenic?Yes
OperatorsSilvia Caprioli, Federico Incardona, Claudio Pincella
PHSW state0101
Notes

The source data file was «SCI170531_141329 - STRIP56_Tcryo20K_RF_-40dBm_0101_pol-JPL_31May2017.txt» (407 kB)

Authorsilvia
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1877 1874 1961 1977 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
65750 68900 67250 66600 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.45 350.0
H1 (HB1) 0.9 3.53 370.0
H2 (HA2) 1.2 13.87 -57.0
H3 (HB2) 1.2 13.0 80.0
H4 (HA3) 0.9 9.03 400.0
H5 (HB3) 0.9 8.56 320.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.45±0.20 8.12±0.28 JSON Download Edit  Delete

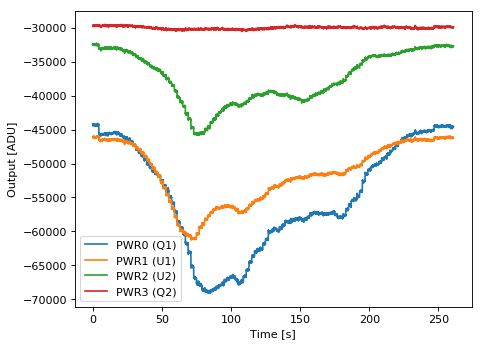

Spectrum
