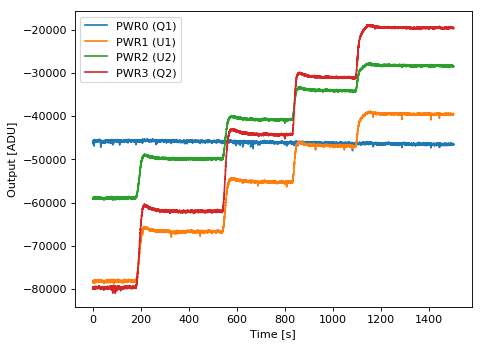

STRIP56 – Y-factor test
General information
| Polarimeter | STRIP56 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Federico Incardona, Claudio Pincella |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170531_151224 - STRIP56_Y-Factor_LB_20K_down_50-40-30-20-10_PS0101_31May2017.txt» (2366 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (475.4 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 3.45 | 350.0 |
| H1 (HB1) | 0.9 | 3.53 | 370.0 |
| H2 (HA2) | 1.2 | 13.87 | -57.0 |
| H3 (HB2) | 1.2 | 13.0 | 80.0 |
| H4 (HA3) | 0.9 | 9.03 | 400.0 |
| H5 (HB3) | 0.9 | 8.56 | 320.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.0 | 50.0 | 51.5 | 20.0 | 16.4 | 15.0 | 24.3 |
|
| 20.0 | 25.1 | 40.0 | 42.3 | 20.0 | 16.4 | 15.0 | 24.3 |
|
| 20.0 | 25.1 | 30.0 | 31.8 | 20.0 | 16.4 | 15.0 | 24.3 |
|
| 20.0 | 25.1 | 20.0 | 23.4 | 20.0 | 16.4 | 15.0 | 24.3 |
|
| 20.0 | 25.1 | 10.0 | 12.8 | 20.0 | 16.4 | 15.0 | 24.3 |
|
