Strip Test Database

STRIP44 – Bandpass characterization

General information

Edit  Delete

Polarimeter STRIP44
Acquisition date
BandQ
Cryogenic?Yes
OperatorsSilvia Caprioli
PHSW state0101
Notes

The high HEMTs currents generate dissipation, which makes the polarimeter temperature unstable. We decided therefore to thermalize the polarimeter at 22 K (instead of 20 K).

The source data file was «SCI171002_135742 - STRIP44_Tcryo20K_RF_-40dBm_0101_02Oct2017_11bis.txt» (384 kB)

Authorsilvia
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1873 1880 1816 1873 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
125048 137270 125840 111700 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.8 90.0
H1 (HB1) 0.9 7.6 -280.0
H2 (HA2) 0.9 4.0 222.0
H3 (HB2) 0.9 8.5 297.0
H4 (HA3) 0.9 4.5 139.0
H5 (HB3) 0.9 9.0 203.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.28±0.41 6.14±0.60 JSON Download Edit  Delete

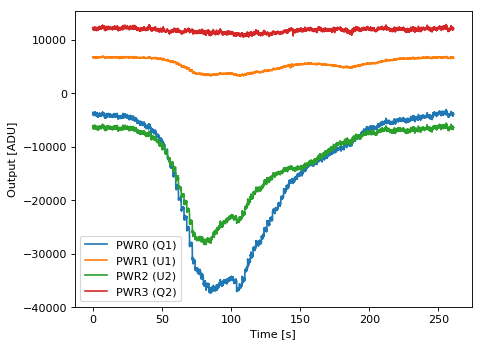

Spectrum
