Strip Test Database

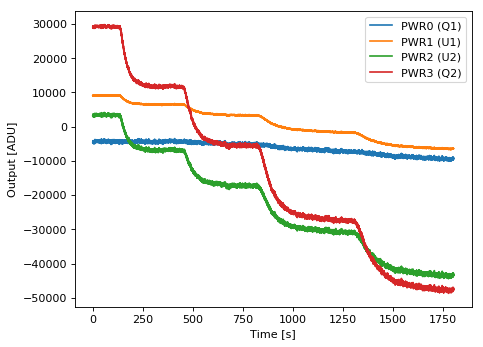

STRIP44 – Y-factor test
General information
| Polarimeter | STRIP44 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| PHSW state | 0101 |
| Notes | The source data file was «SCI171002_143016 - STRIP44_Y-Factor_LA_20K_up_10-20-30-40-50_PS0101_02Oct2017.txt» (2708 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (601.2 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.8 | 90.0 |
| H1 (HB1) | 0.9 | 7.6 | -280.0 |
| H2 (HA2) | 0.9 | 4.0 | 222.0 |
| H3 (HB2) | 0.9 | 8.5 | 297.0 |
| H4 (HA3) | 0.9 | 4.5 | 139.0 |
| H5 (HB3) | 0.9 | 9.0 | 203.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.7 | 10.0 | 13.7 | 22.0 | 20.0 | 15.0 | 24.6 |
|
| 20.0 | 25.7 | 20.0 | 27.5 | 22.0 | 20.0 | 15.0 | 24.6 |
|
| 20.0 | 25.7 | 30.0 | 36.6 | 22.0 | 20.0 | 15.0 | 24.6 |
|
| 20.0 | 25.7 | 40.0 | 48.5 | 22.6 | 21.3 | 15.0 | 24.6 |
|
| 20.0 | 25.7 | 50.0 | 59.7 | 22.6 | 21.3 | 15.0 | 24.6 |
|
