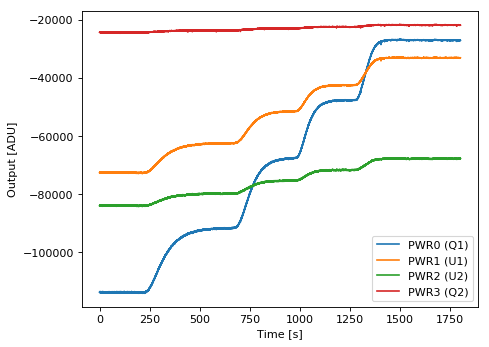

STRIP67 – Y-factor test
General information
| Polarimeter | STRIP67 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Mario Zannoni |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170705_144830 - STRIP67_Y-Factor_LB_20K_down_50-40-30-20-10_PS0110_05Jul2017.txt» (2858 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (566.3 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.45 | 360.0 |
| H1 (HB1) | 0.9 | 4.4 | 270.0 |
| H2 (HA2) | 1.21 | 13.95 | -9.0 |
| H3 (HB2) | 1.21 | 15.01 | 42.0 |
| H4 (HA3) | 0.9 | 10.0 | 236.0 |
| H5 (HB3) | 0.9 | 8.1 | 295.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 24.9 | 50.0 | 59.6 | 20.0 | 16.2 | 15.0 | 24.7 |
|
| 20.0 | 24.9 | 40.0 | 48.7 | 20.0 | 16.2 | 15.0 | 24.7 |
|
| 20.0 | 24.9 | 30.0 | 36.7 | 20.0 | 16.2 | 15.0 | 24.7 |
|
| 20.0 | 24.9 | 20.0 | 27.5 | 20.0 | 16.2 | 15.0 | 24.7 |
|
| 20.0 | 24.9 | 10.0 | 13.9 | 20.0 | 16.2 | 15.0 | 24.7 |
|
