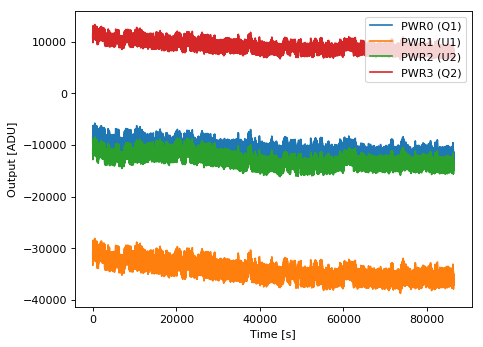

STRIP37 – Long acquisition
General information
| Polarimeter | STRIP37 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| PHSW state | switching |
| Notes | The source data file was «SCI171205_135503 - STRIP37_1_f__PS-default_24hours_05Dec2017.txt» (155810 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (27.9 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 6.15 | 32.0 |
| H1 (HB1) | 0.9 | 8.0 | 51.0 |
| H2 (HA2) | 0.9 | 4.89 | 303.0 |
| H3 (HB2) | 0.9 | 7.06 | 418.0 |
| H4 (HA3) | 0.9 | 6.0 | -141.0 |
| H5 (HB3) | 0.9 | 9.0 | 92.0 |
