Strip Test Database

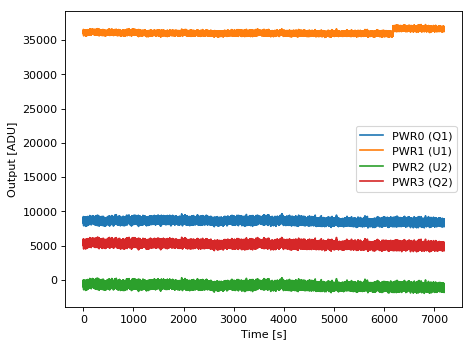

STRIP17 – Long acquisition
General information
| Polarimeter | STRIP17 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| PHSW state | switching |
| Notes | The source data file was «SCI171031_142440 - STRIP17_1_f__PS-default_2hours_31Oct2017.txt» (11631 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (2.3 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 9.0 | -84.0 |
| H1 (HB1) | 0.9 | 1.7 | 264.0 |
| H2 (HA2) | 0.9 | 4.43 | 480.0 |
| H3 (HB2) | 0.9 | 4.6 | 600.0 |
| H4 (HA3) | 0.9 | 8.0 | 98.0 |
| H5 (HB3) | 0.9 | 6.7 | 159.0 |
