STRIP10 – Long acquisition 2
General information
| Polarimeter | STRIP10 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |

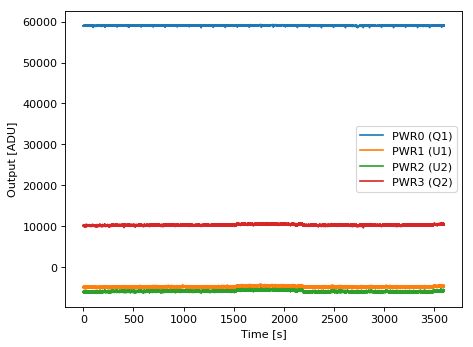

| Description | Long acquisition 2 |
| PHSW state | switching |
| Notes | The source data file was «SCI170614_155402 - STRIP10_1_f__PS-default_polariz_caso4_14Jun2017.txt» (6039 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (1.1 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.0 | -90.0 |
| H1 (HB1) | 0.9 | 7.95 | 370.0 |
| H2 (HA2) | 0.9 | 6.5 | 250.0 |
| H3 (HB2) | 0.9 | 7.0 | 286.0 |
| H4 (HA3) | 0.9 | 5.54 | 90.0 |
| H5 (HB3) | 0.9 | 6.52 | 10.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.5 | 20.0 | 23.8 | 20.0 | 16.3 | 15.0 | 24.6 |
|
