STRIP36 – Long acquisition

General information

Polarimeter	STRIP36
Acquisition date	Tuesday, June 20, 2017
Band	Q
Cryogenic?	Yes
Operators	Claudio Pincella
PHSW state	switching
Notes	The source data file was «SCI170620_161753 - STRIP36_1_f__PS-default_pol_QUIET_caso8_20Jun2017.txt» (6653 kB)
Author	claudio
Date of creation	Wednesday, December 20, 2017
JSON record	Link

Download data file (1.1 MB)

ADC offsets

PWR0	PWR1	PWR2	PWR3
1828	1861	1840	1834

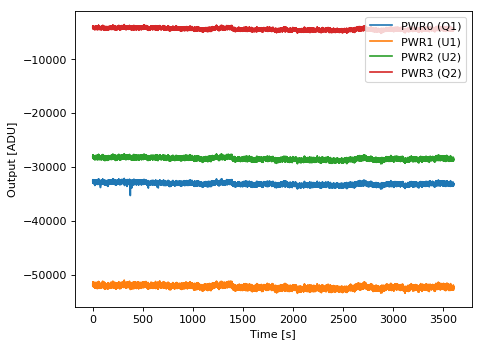

Detector outputs

PWR0	PWR1	PWR2	PWR3
99510	100700	99530	101030

HEMT biases

HEMT	V_d [V]	I_d [mA]	V_g [mV]
H0 (HA1)	0.8	6.67	96.0
H1 (HB1)	0.8	6.86	61.0
H2 (HA2)	0.8	4.72	229.0
H3 (HB2)	0.8	5.51	237.0
H4 (HA3)	0.8	3.06	369.0
H5 (HB3)	0.8	4.48	0.0

Temperatures

T_A1 [K]	T_A2 [K]	T_B1 [K]	T_B2 [K]	T_p1 [K]	T_p2 [K]	T_c1 [K]	T_c2 [K]
20.0	25.7	20.0	23.5	20.0	16.2	15.0	25.1

Reports

Noise temperatures

Add new

Bandpasses

Add new

Spectrum

Method	α_I	α_Q	fk_Q [mHz]	WN_Q [mK²/Hz]	α_U	fk_U [mHz]	WN_U [mK²/Hz]	Details	Report	Actions
	0.94740±0.00003	0.620±0.001	400.0±100.0	2.70±0.500	0.512±0.002	300.0±100.0	2.40±0.400	JSON	Download

Add new
