STRIP39 – Bandpass characterization (PS1010 - PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP39
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization (PS1010 - PWR3 blind)
PHSW state1010
Notes

The source data file was «SCI171019_122039 - STRIP39_Tcryo20K_RF_V3_--base_-40dBm_1010_19Oct2017.txt» (394 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1824 1818 1826 1817 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
99760 101360 98000 100800 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.5 -55.0
H1 (HB1) 0.9 3.5 -52.0
H2 (HA2) 0.9 6.0 308.0
H3 (HB2) 0.9 6.0 239.0
H4 (HA3) 0.9 6.0 116.0
H5 (HB3) 0.9 7.0 131.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.17±0.09 6.18±0.57 JSON Download Edit  Delete

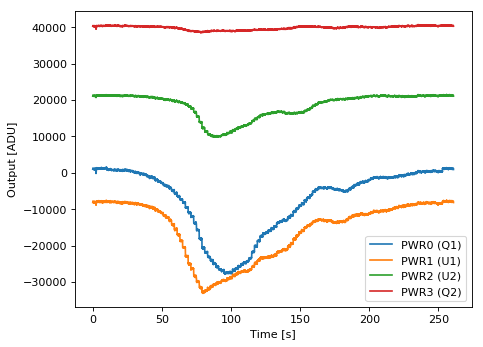

Spectrum
