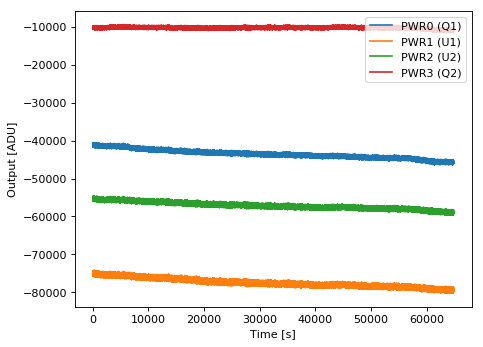

STRIP45 – Long acquisition
General information
| Polarimeter | STRIP45 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli |
| PHSW state | switching |
| Notes | The source data file was «SCI171211_164828 - STRIP45_1_f__PS-default_18hours_11Dec2017.txt» (119789 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (18.7 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.15 | -244.0 |
| H1 (HB1) | 0.9 | 4.4 | 35.0 |
| H2 (HA2) | 0.9 | 7.26 | 472.0 |
| H3 (HB2) | 0.9 | 7.68 | 302.0 |
| H4 (HA3) | 0.9 | 6.75 | 171.0 |
| H5 (HB3) | 0.9 | 5.14 | -0.7 |
