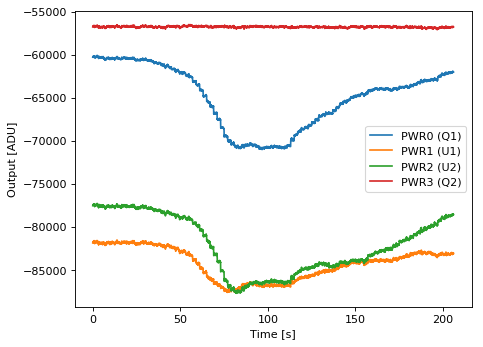

STRIP27 – Bandpass characterization-INCOMPLETE
General information
| Polarimeter | STRIP27 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Silvia Caprioli, Claudio Pincella |
| Description | Bandpass characterization-INCOMPLETE |
| PHSW state | 0101 |
| Notes | this test should not be used in bandpass analysis because it's too short (the RF generator stops at 47.9 GHz). The source data file was «SCI170413_130353 - Qband27_Tcryo20K_RF -40dBm_0101_PolarTamb_QUIET_13Apr2017.txt» (322 kB) |
| Author | silvia |
| Date of creation | |
| JSON record | Link |
- Download data file (89.7 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 5.0 | 113.0 |
| H1 (HB1) | 0.9 | 4.2 | 270.0 |
| H2 (HA2) | 0.9 | 7.7 | 348.0 |
| H3 (HB2) | 0.9 | 8.9 | 495.0 |
| H4 (HA3) | 0.9 | 8.7 | 373.0 |
| H5 (HB3) | 0.9 | 9.0 | 485.0 |
