STRIP07 – Bandpass (PWR0 blind)
General information
| Polarimeter | STRIP07 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Maurizio Tomasi, Federico Incardona |
| Description | Bandpass (PWR0 blind) |
| PHSW state | 0110 |
| Notes | (None) |
| Author | tomasi |
| Date of creation | |
| JSON record | Link |
- Download data file (100.6 KB)

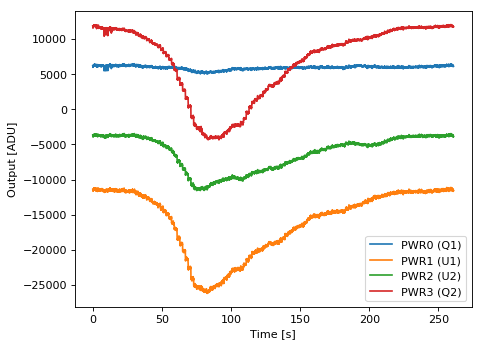

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.4 | 635.0 |
| H1 (HB1) | 0.9 | 4.5 | 160.0 |
| H2 (HA2) | 0.9 | 7.6 | 439.0 |
| H3 (HB2) | 0.9 | 7.2 | 278.0 |
| H4 (HA3) | 0.9 | 6.3 | -282.0 |
| H5 (HB3) | 0.9 | 5.6 | 18.0 |
