STRIP07 – Y-factor, warm-up (PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP07
Acquisition date
BandQ
Cryogenic?Yes
OperatorsMaurizio Tomasi, Federico Incardona
DescriptionY-factor, warm-up (PWR0 blind)
PHSW state0101
Notes

Warm-up test. The analysis seems to indicate that offsets are somewhat wrong.

Authortomasi
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1793 1790 1792 1848 Edit  Delete

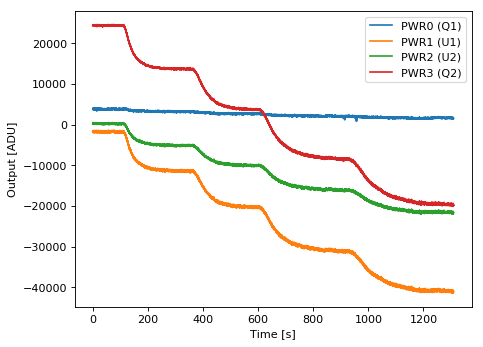

Detector outputs
PWR0 PWR1 PWR2 PWR3
63790 62500 61255 62510 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.4 635.0
H1 (HB1) 0.9 4.5 160.0
H2 (HA2) 0.9 7.6 439.0
H3 (HB2) 0.9 7.2 278.0
H4 (HA3) 0.9 6.3 -282.0
H5 (HB3) 0.9 5.6 18.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 25.5 10.0 13.3 20.0 16.0 15.0 24.6 Edit  Delete
20.0 25.4 20.0 27.1 20.0 16.0 15.0 24.6 Edit  Delete
20.0 25.4 30.0 36.2 20.0 16.0 15.0 24.6 Edit  Delete
20.0 25.4 40.0 48.2 20.0 16.0 15.0 24.6 Edit  Delete
20.0 25.3 50.0 59.3 20.0 16.0 15.0 24.6 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 24.3±2.1 1235±72 1630±77 1440±66 1054±66 JSON Download Edit  Delete
Bandpasses
Spectrum
