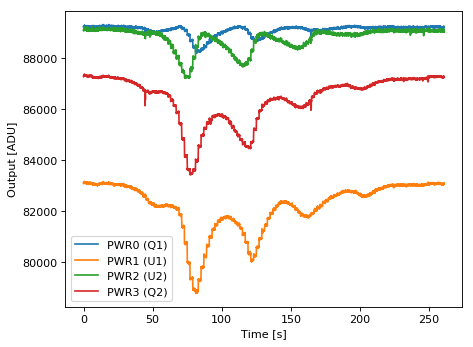

STRIP22 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP22 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella, Simone Iovenitti |
| Description | Bandpass characterization Tcryo (PS0110 - PWR0 blind) |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170905_103332 - STRIP22_Tcryo20K_RF_-40dBm_0110_PolMario+_05Sep2017.txt» (387 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (84.9 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.22 | -296.0 |
| H1 (HB1) | 0.9 | 4.55 | 24.0 |
| H2 (HA2) | 0.9 | 4.6 | 202.0 |
| H3 (HB2) | 0.9 | 2.3 | 73.0 |
| H4 (HA3) | 0.9 | 8.6 | -107.0 |
| H5 (HB3) | 0.9 | 3.0 | -60.0 |
