STRIP22 – Y-Factor test_down LB (PS0101-PWR0 blind)
General information
| Polarimeter | STRIP22 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Y-Factor test_down LB (PS0101-PWR0 blind) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170905_105541 - STRIP22_Y-Factor_LB_20K_down_40-30-20_PolMario+_PS0101_05Set2017.txt» (894 kB) TC2 temperature was not available and the value here indicated is an estimation based on other similar test conditions |
| Author | claudio |
| Date of creation | |
| JSON record | Link |

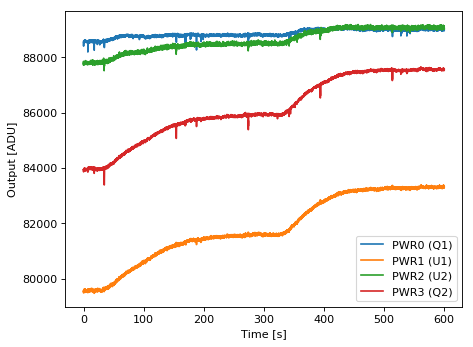

- Download data file (180.7 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.22 | -296.0 |
| H1 (HB1) | 0.9 | 4.55 | 24.0 |
| H2 (HA2) | 0.9 | 4.6 | 202.0 |
| H3 (HB2) | 0.9 | 2.3 | 73.0 |
| H4 (HA3) | 0.9 | 8.6 | -107.0 |
| H5 (HB3) | 0.9 | 3.0 | -60.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.6 | 40.0 | 48.3 | 20.0 | 16.1 | 15.0 | 25.7 |
|
| 20.0 | 25.6 | 30.0 | 36.6 | 20.0 | 16.1 | 15.0 | 25.7 |
|
| 20.0 | 25.6 | 20.0 | 27.4 | 20.0 | 16.1 | 15.0 | 25.7 |
|
