STRIP17 – Y-Factor test_down LB (PS0110-PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP17
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionY-Factor test_down LB (PS0110-PWR3 blind)
PHSW state0110
Notes

The source data file was «SCI171031_135917 - STRIP17_Y-Factor_LB_20K_down_50-20-30-20_PS0110_31Oct2017.txt» (1775 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1887 1863 1793 1867 Edit  Delete

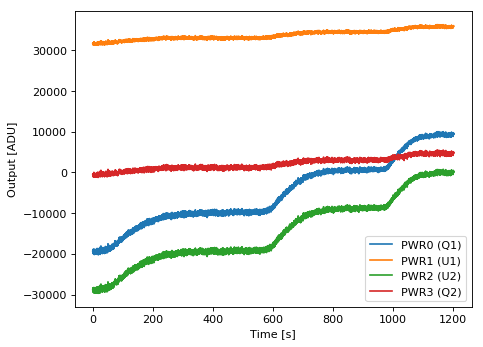

Detector outputs
PWR0 PWR1 PWR2 PWR3
74200 76300 72580 73020 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 9.0 -84.0
H1 (HB1) 0.9 1.7 264.0
H2 (HA2) 0.9 4.43 480.0
H3 (HB2) 0.9 4.6 600.0
H4 (HA3) 0.9 8.0 98.0
H5 (HB3) 0.9 6.7 159.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 25.7 50.0 59.5 20.0 16.7 15.0 25.1 Edit  Delete
20.0 25.7 40.0 48.4 20.0 16.7 15.0 25.1 Edit  Delete
20.0 25.7 30.0 36.5 20.0 16.7 15.0 25.1 Edit  Delete
20.0 25.7 20.0 27.4 20.0 16.7 15.0 25.1 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 44.6±10.2 878±148 580±81 1218±168 902±179 JSON Download Edit  Delete
Bandpasses
Spectrum
