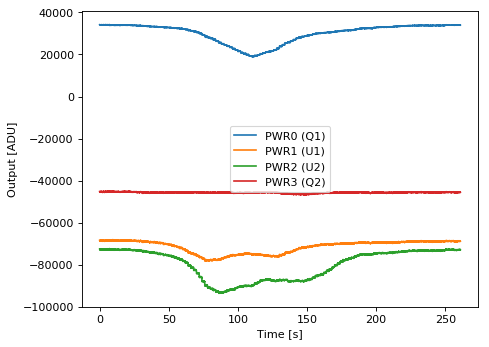

STRIP10 – Bandpass characterization Tcryo (PS1010 - PWR3 blind)
General information
| Polarimeter | STRIP10 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tcryo (PS1010 - PWR3 blind) |
| PHSW state | 1010 |
| Notes | The source data file was «SCI170614_083221 - STRIP10_Tcryo20K_RF -40dBm_1010_STRIP_Caso1_14Jun2017.txt» (411 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (93.3 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 4.0 | -90.0 |
| H1 (HB1) | 0.9 | 7.95 | 370.0 |
| H2 (HA2) | 0.9 | 6.5 | 250.0 |
| H3 (HB2) | 0.9 | 7.0 | 286.0 |
| H4 (HA3) | 0.9 | 5.54 | 90.0 |
| H5 (HB3) | 0.9 | 6.52 | 10.0 |
