STRIP10 – Y-Factor test_down LB (PS0110-PWR3 blind)

General information

Edit  Delete

Polarimeter STRIP10
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionY-Factor test_down LB (PS0110-PWR3 blind)
PHSW state0110
Notes

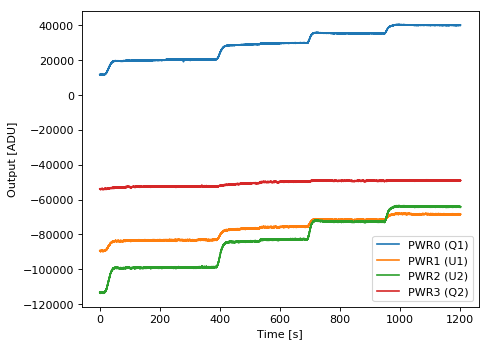

The source data file was «SCI170614_091447 - STRIP10_Y-Factor_LB_40K_down_50-40-30-20-10_PS0110_14Jun2017.txt» (1907 kB)

At high LB temperatures it has not been possible to maintain polarimeter temperature at 20K (no more control available of the temperature by mean of its heater, already at zero output power).
Actual polarimeter temperature was 20.4 and 20.8K with loadB respectively at 40 and 50K

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1833 1828 1849 1788 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
99260 100675 192525 103450 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.0 -90.0
H1 (HB1) 0.9 7.95 370.0
H2 (HA2) 0.9 6.5 250.0
H3 (HB2) 0.9 7.0 286.0
H4 (HA3) 0.9 5.54 90.0
H5 (HB3) 0.9 6.52 10.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 25.4 50.0 51.6 20.8 16.9 15.0 24.6 Edit  Delete
20.0 25.4 40.0 42.1 20.4 16.6 15.0 24.6 Edit  Delete
20.0 25.5 30.0 32.0 20.0 16.3 15.0 24.6 Edit  Delete
20.0 25.5 20.0 23.7 20.0 16.3 15.0 24.7 Edit  Delete
20.0 25.5 10.0 13.0 20.0 16.3 15.0 24.7 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 83.4±5.8 614±36 1630±86 2562±132 1370±88 JSON Download Edit  Delete
Bandpasses
Spectrum
