Strip Test Database
STRIP08 – Bandpass characterization Tcryo (PS0101 - PWR3 blind)
General information
| Polarimeter | STRIP08 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Mario Zannoni |
| Description | Bandpass characterization Tcryo (PS0101 - PWR3 blind) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170331_112351 - Qband08_20K_PS0101_STRIP.txt» (414 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (92.3 KB)
ADC offsets

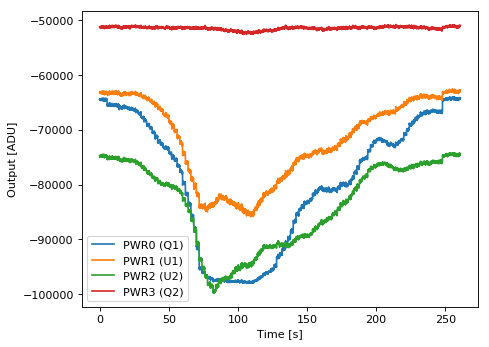

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.7 | 4.3 | 600.0 |
| H1 (HB1) | 0.7 | 7.0 | 80.0 |
| H2 (HA2) | 0.7 | 7.4 | 260.0 |
| H3 (HB2) | 0.6 | 4.9 | 0.0 |
| H4 (HA3) | 0.7 | 7.0 | -380.0 |
| H5 (HB3) | 0.7 | 6.1 | -100.0 |
