STRIP54 – Bandpass characterization Tcryo (PS0110 - PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP54
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
DescriptionBandpass characterization Tcryo (PS0110 - PWR0 blind)
PHSW state0110
Notes

The source data file was «SCI170530_152431 - STRIP54_Tcryo20K_RF_-40dBm_0110_pol-JPL_30May2017.txt» (388 kB)

Authorclaudio
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1960 1948 1908 1833 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
84550 86730 86700 85720 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.2 0.0
H1 (HB1) 0.9 3.0 142.0
H2 (HA2) 1.2 13.9 193.0
H3 (HB2) 1.21 12.9 372.0
H4 (HA3) 0.91 9.1 395.0
H5 (HB3) 0.9 8.07 399.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.24±0.11 8.12±0.34 JSON Download Edit  Delete

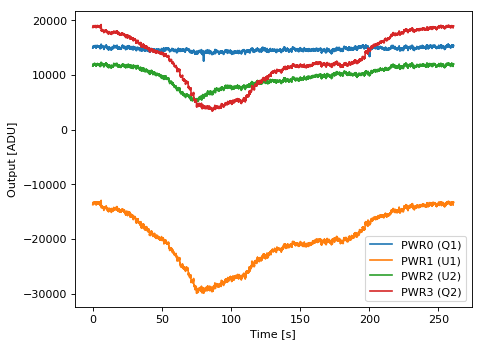

Spectrum
