STRIP08 – Bandpass characterization Tambient (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP08 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0110 - PWR0 blind) |
| PHSW state | N/A |
| Notes | The source data file was «SCI170116_204630 - Qband08_Caso base con Tr_PS0110.txt» (381 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (84.3 KB)
ADC offsets

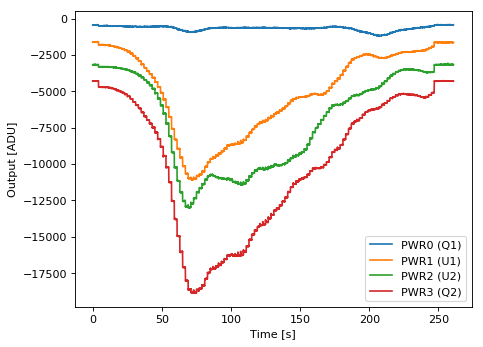

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 3.8 | 500.0 |
| H1 (HB1) | 0.6 | 4.5 | 20.0 |
| H2 (HA2) | 0.6 | 6.8 | 242.0 |
| H3 (HB2) | 0.6 | 6.3 | 389.0 |
| H4 (HA3) | 0.6 | 7.0 | -98.0 |
| H5 (HB3) | 0.6 | 6.6 | -104.0 |
