Strip Test Database
STRIP12 – Bandpass characterization Tambient (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP12 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0110 - PWR0 blind) |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170117_204822 - Qband12_Tamb_RF -15dBm_0110_Vd=0.6V caso base_17January17.txt» (384 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (81.6 KB)
ADC offsets

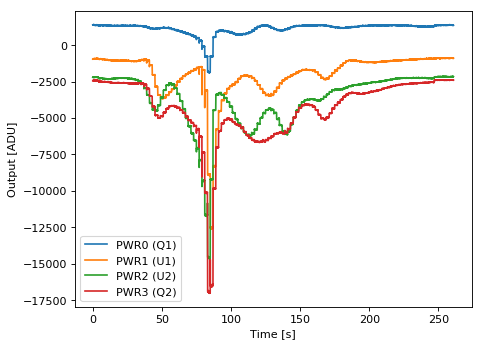

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 5.6 | 80.0 |
| H1 (HB1) | 0.6 | 6.2 | -60.0 |
| H2 (HA2) | 0.6 | 4.0 | 540.0 |
| H3 (HB2) | 0.6 | 5.3 | 349.0 |
| H4 (HA3) | 0.6 | 6.8 | -92.0 |
| H5 (HB3) | 0.6 | 6.4 | 200.0 |
