Strip Test Database
STRIP15 – Bandpass characterization Tambient (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP15 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0110 - PWR0 blind) |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170328_143955 - Qband15_Tamb_RF -15dBm_0110_caso2_-dispari_28March17.txt» (369 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (77.8 KB)
ADC offsets

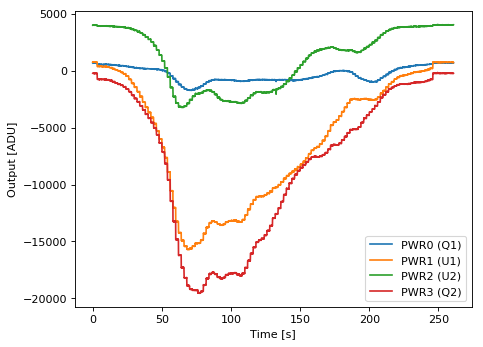

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 5.8 | -360.0 |
| H1 (HB1) | 0.9 | 6.0 | 60.0 |
| H2 (HA2) | 0.9 | 4.1 | 100.0 |
| H3 (HB2) | 0.7 | 8.1 | 200.0 |
| H4 (HA3) | 0.9 | 10.1 | 0.0 |
| H5 (HB3) | 0.9 | 9.8 | -20.0 |
