STRIP33 – Bandpass characterization

General information

Edit  Delete

Polarimeter STRIP33
Acquisition date
BandQ
Cryogenic?Yes
OperatorsClaudio Pincella
PHSW state0101
Notes

The source data file was «SCI171117_115636 - STRIP33_Tcryo20K_RF_-40dBm_0101_17Oct2017.txt» (396 kB). This test was performed in the afternoon.

Authortomasi
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1842 1821 1826 1827 Edit  Delete

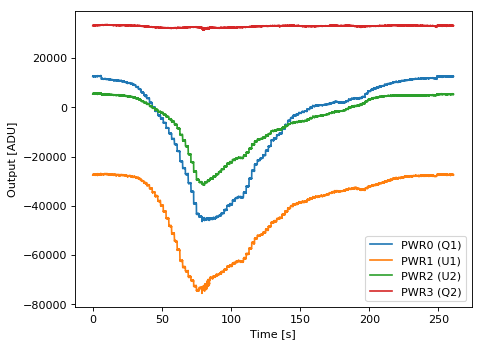

Detector outputs
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 3.75 -10.0
H1 (HB1) 0.9 3.95 8.0
H2 (HA2) 0.9 8.42 321.0
H3 (HB2) 0.9 8.14 262.0
H4 (HA3) 0.9 7.67 101.0
H5 (HB3) 0.9 6.71 19.0
Temperatures

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
42.87±0.07 6.27±0.15 JSON Download Edit  Delete
Spectrum
