STRIP28 – Bandpass characterization Tambient (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP28 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0110 - PWR0 blind) |
| PHSW state | N/A |
| Notes | The source data file was «SCI161205_232028 - Qband28_Tamb_RF-15dBm_0110_Vd=0.6V Id=7mA_5December.txt» (393 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (75.9 KB)
ADC offsets

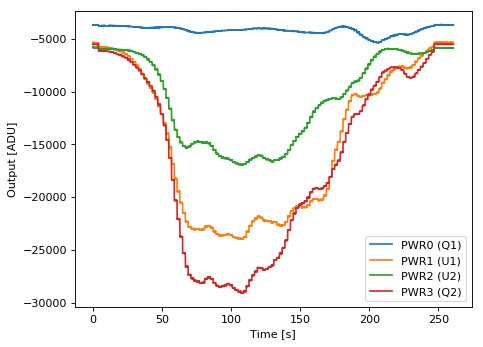

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 7.3 | -363.0 |
| H1 (HB1) | 0.6 | 7.3 | -397.0 |
| H2 (HA2) | 0.6 | 7.1 | 259.0 |
| H3 (HB2) | 0.6 | 6.9 | 222.0 |
| H4 (HA3) | 0.6 | 7.2 | 219.0 |
| H5 (HB3) | 0.6 | 6.9 | 201.0 |
