Strip Test Database
STRIP29 – Bandpass characterization Tambient (PS1010 - PWR3 blind)
General information
| Polarimeter | STRIP29 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS1010 - PWR3 blind) |
| PHSW state | 1010 |
| Notes | The source data file was «SCI170418_140445 - Qband29_Tamb_RF -15dBm_1010_caso_base_QUIET_18Apr17.txt» (393 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (78.1 KB)
ADC offsets

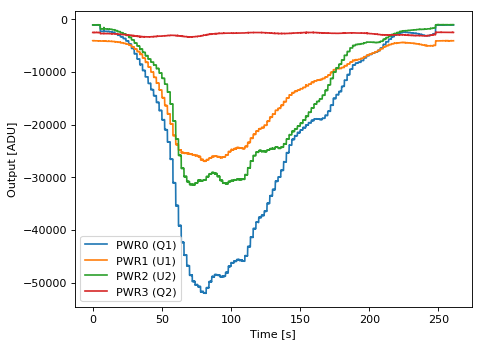

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 6.5 | 40.0 |
| H1 (HB1) | 0.6 | 6.9 | -35.0 |
| H2 (HA2) | 0.7 | 6.3 | 220.0 |
| H3 (HB2) | 0.7 | 7.1 | 160.0 |
| H4 (HA3) | 0.6 | 6.4 | -100.0 |
| H5 (HB3) | 0.6 | 7.1 | -380.0 |
