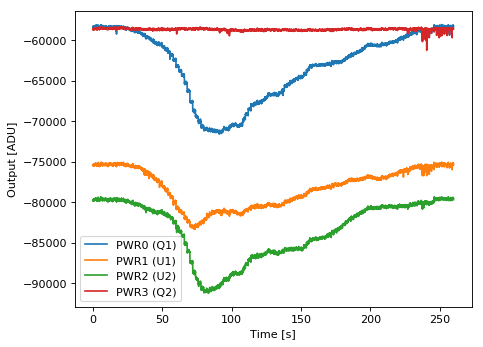

STRIP16 – Bandpass characterization
General information
| Polarimeter | STRIP16 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona, Claudio Pincella |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170404_140948 - Qband16_Tcryo20K_RF -40dBm_0101_caso3_+++pari_04Apr2017.txt» (406 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (89.7 KB)
ADC offsets
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 5.5 | 260.0 |
| H1 (HB1) | 0.9 | 4.5 | 330.0 |
| H2 (HA2) | 0.9 | 8.0 | 500.0 |
| H3 (HB2) | 0.9 | 7.6 | 500.0 |
| H4 (HA3) | 0.9 | 8.3 | -60.0 |
| H5 (HB3) | 0.9 | 3.2 | 20.0 |
