Strip Test Database

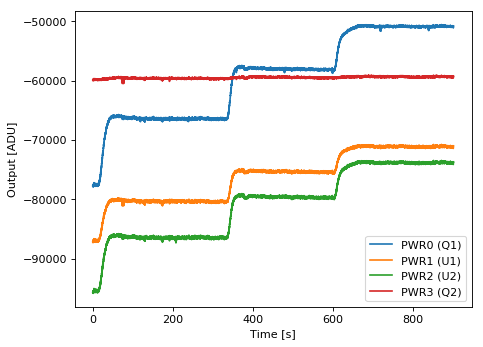

STRIP16 – Y-factor test
General information
| Polarimeter | STRIP16 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona, Claudio Pincella |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170404_144407 - Qband16_Y-Factor_LB_30K down_40-30-20-10_Polar caso 3_PS0110_04Apr2017.txt» (1415 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (287.4 KB)
ADC offsets
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 5.5 | 260.0 |
| H1 (HB1) | 0.9 | 4.5 | 330.0 |
| H2 (HA2) | 0.9 | 8.0 | 500.0 |
| H3 (HB2) | 0.9 | 7.6 | 500.0 |
| H4 (HA3) | 0.9 | 8.3 | -60.0 |
| H5 (HB3) | 0.9 | 3.2 | 20.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 21.9 | 40.0 | 41.2 | 20.0 | 12.8 | 15.0 | 24.7 |
|
| 20.0 | 21.9 | 30.0 | 31.2 | 20.0 | 12.8 | 15.0 | 24.7 |
|
| 20.0 | 21.9 | 20.0 | 22.7 | 20.0 | 12.8 | 15.0 | 24.7 |
|
