Strip Test Database
STRIP34 – Bandpass characterization Tambient (PS0101 - PWR3 blind)
General information
| Polarimeter | STRIP34 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0101 - PWR3 blind) |
| PHSW state | N/A |
| Notes | The source data file was «SCI161215_203118 - Qband34_Tamb_RF 15dBm_0101_Vd=0.6V caso base con Tr_15December.txt» (385 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (76.7 KB)
ADC offsets

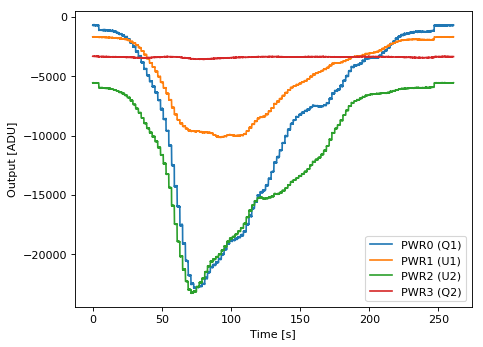

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 6.0 | -60.0 |
| H1 (HB1) | 0.6 | 6.0 | -100.0 |
| H2 (HA2) | 0.6 | 7.0 | 300.0 |
| H3 (HB2) | 0.6 | 3.4 | -50.0 |
| H4 (HA3) | 0.6 | 6.0 | -80.0 |
| H5 (HB3) | 0.6 | 6.0 | -70.0 |
