STRIP36 – Bandpass characterization Tambient (PS0110 - PWR0 blind)
General information
| Polarimeter | STRIP36 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0110 - PWR0 blind) |
| PHSW state | N/A |
| Notes | The source data file was «SCI170120_010119 - Qband36_Tamb_RF -15dBm_0110_Vd=0.6V_caso base con Tr_19January17.txt» (417 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (82.9 KB)
ADC offsets

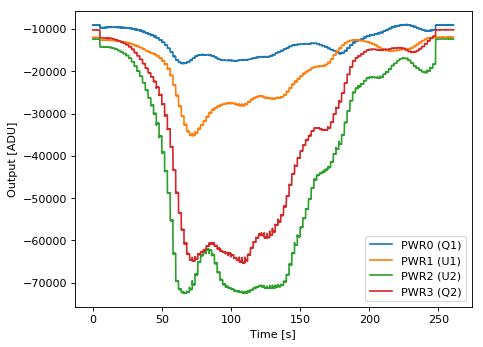

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 6.73 | -55.0 |
| H1 (HB1) | 0.6 | 6.8 | -80.0 |
| H2 (HA2) | 0.6 | 5.57 | 60.0 |
| H3 (HB2) | 0.6 | 6.83 | 80.0 |
| H4 (HA3) | 0.6 | 6.18 | 280.0 |
| H5 (HB3) | 0.6 | 6.28 | -95.0 |
