STRIP37 – Bandpass characterization Tambient (PS0101 - PWR3 blind)
General information
| Polarimeter | STRIP37 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | No |
| Operators | Claudio Pincella |
| Description | Bandpass characterization Tambient (PS0101 - PWR3 blind) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170112_182654 - Qband37_Tamb_RF 15dBm_0101_Vd=0.6V e 0.7V legs pari e disp_12Genuary17.txt» (384 kB) |
| Author | claudio |
| Date of creation | |
| JSON record | Link |
- Download data file (77.5 KB)
ADC offsets

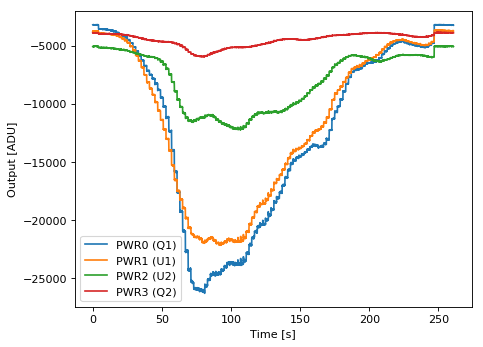

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.6 | 6.4 | -80.0 |
| H1 (HB1) | 0.7 | 7.7 | -100.0 |
| H2 (HA2) | 0.6 | 5.6 | 210.0 |
| H3 (HB2) | 0.7 | 6.4 | 300.0 |
| H4 (HA3) | 0.6 | 7.4 | -220.0 |
| H5 (HB3) | 0.7 | 7.3 | -60.0 |
